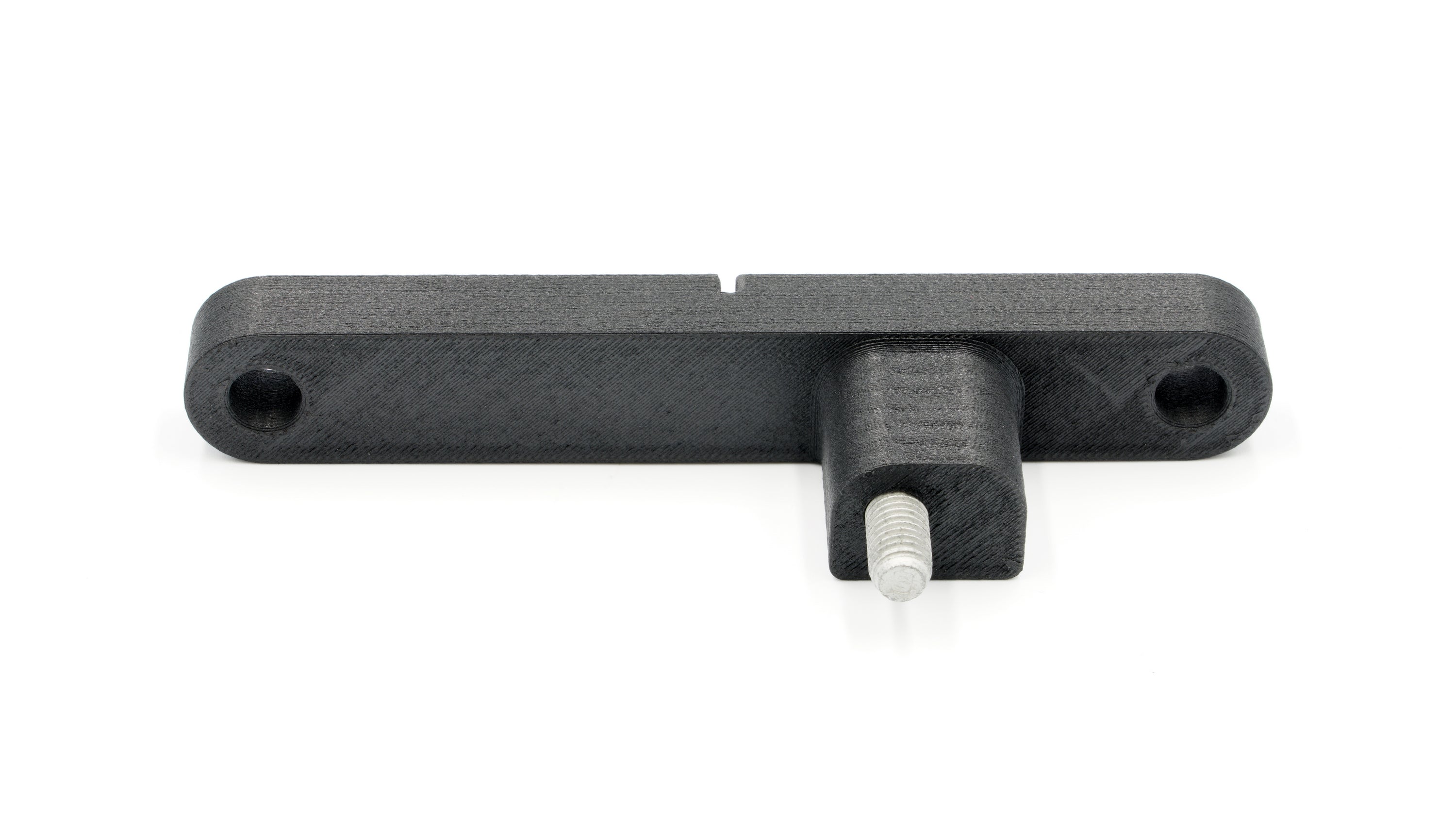

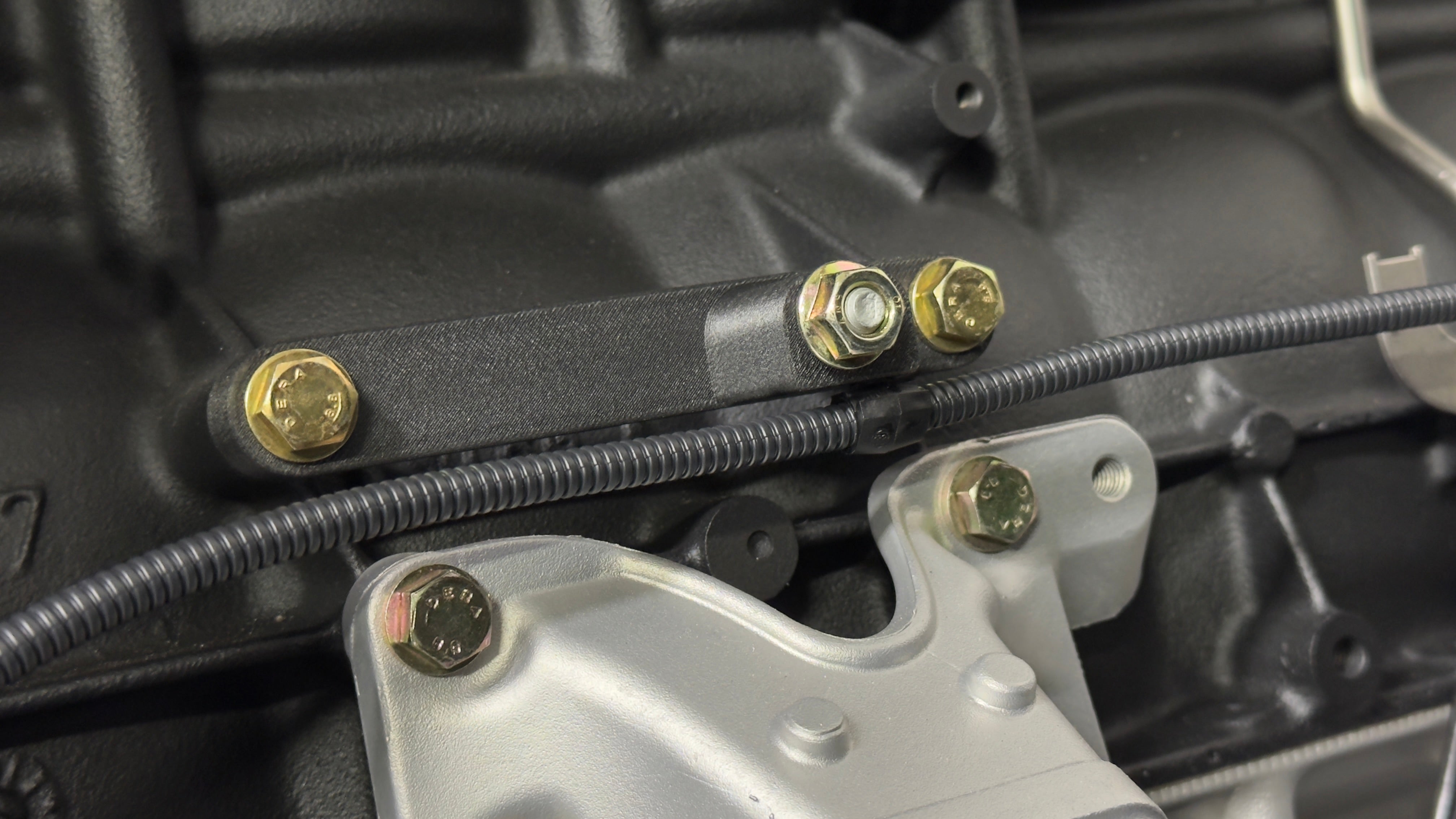

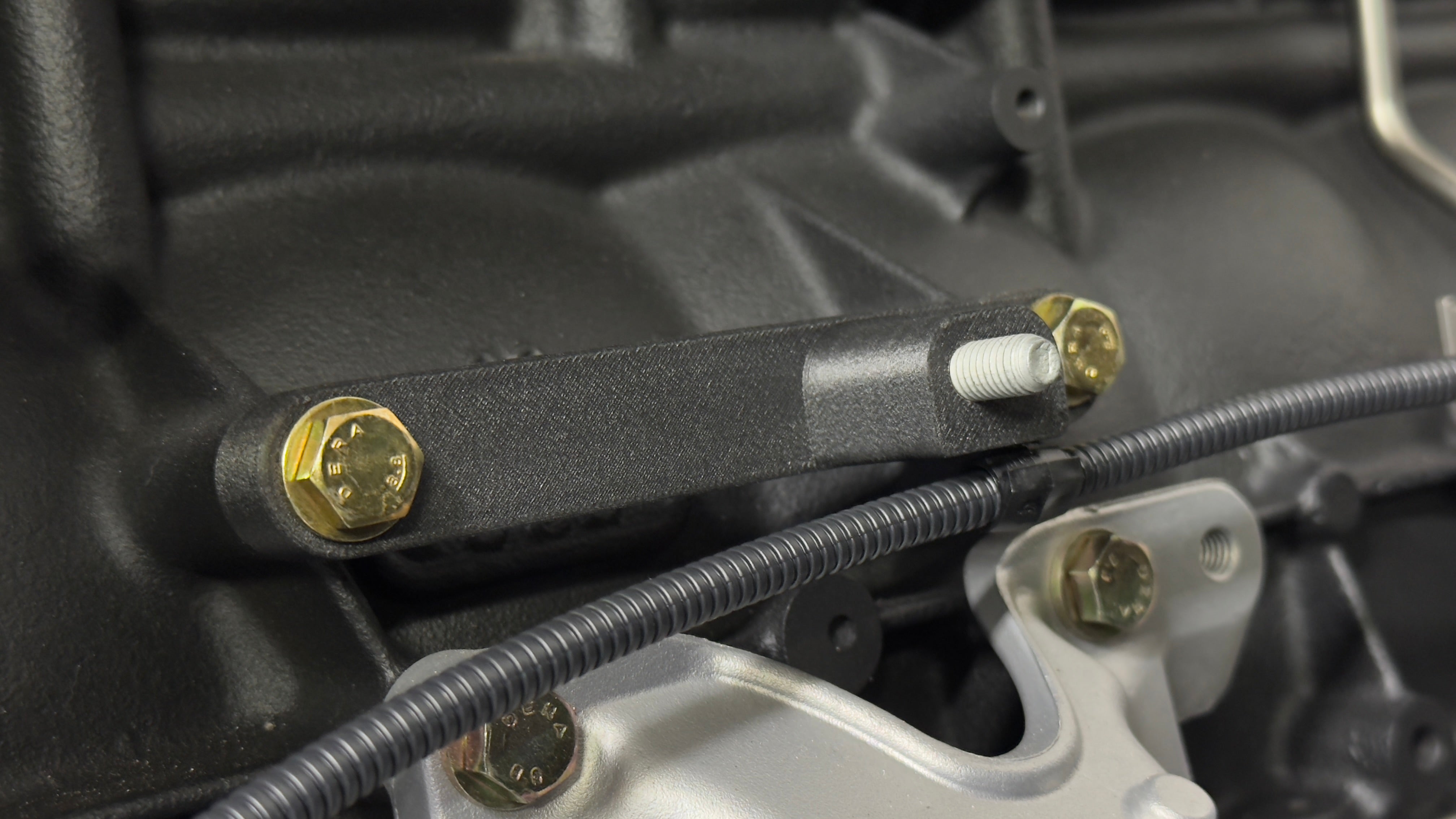

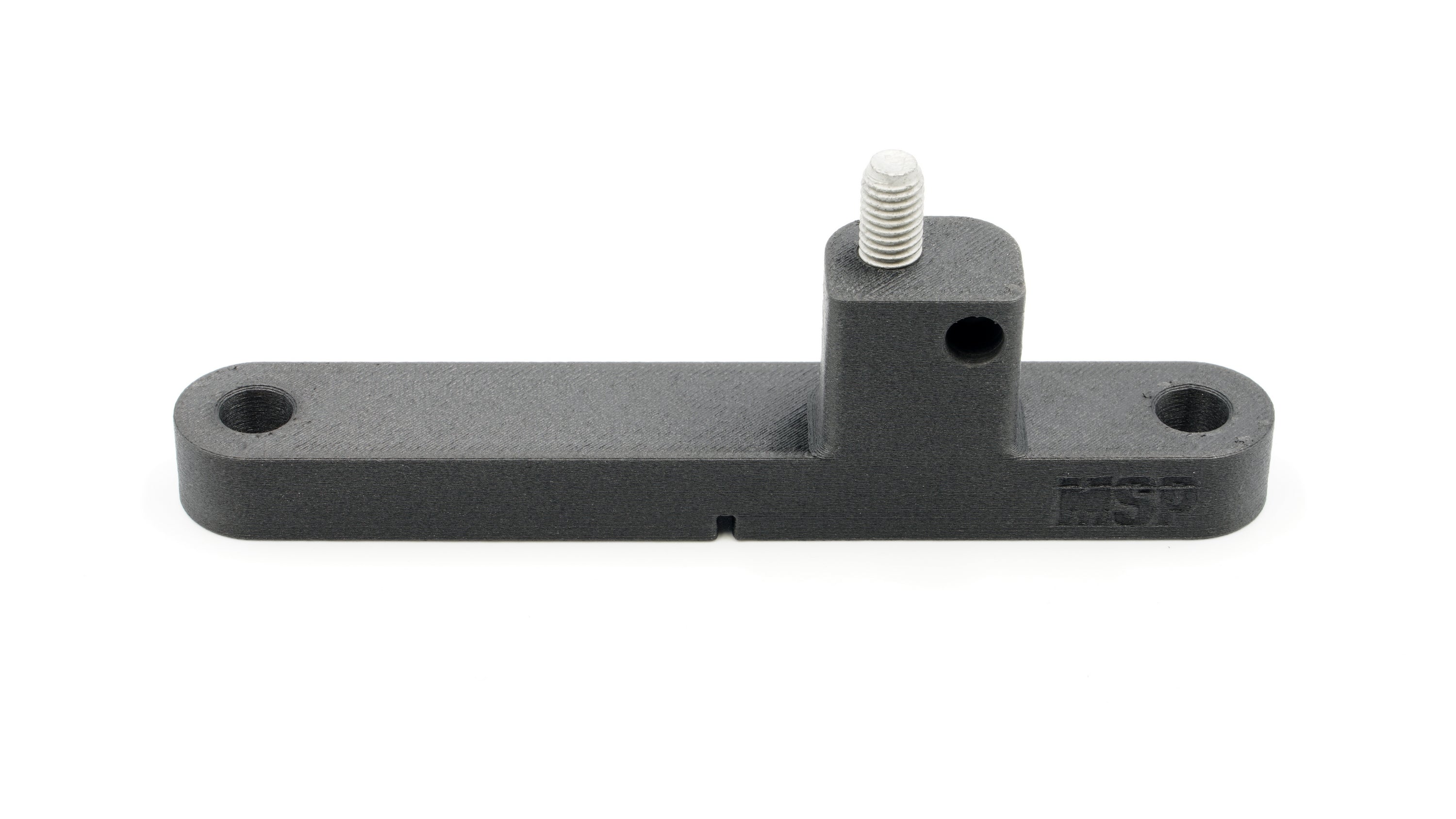

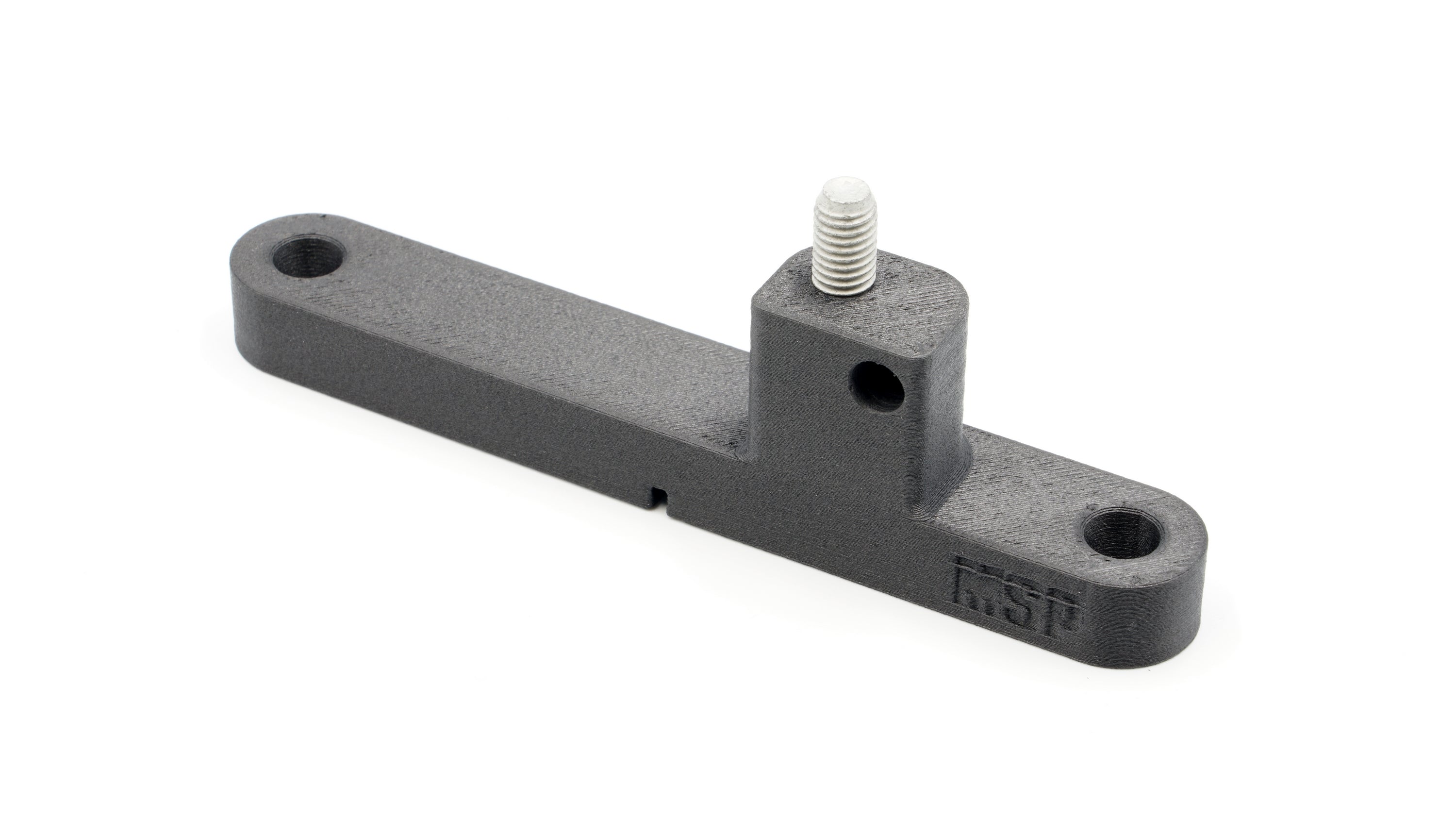

A simple bolt-in solution for adding a lower plenum mount with your S54 swapped E36.
A common issue with an S54 swap is having to use E36 motor mounts and losing the lower plenum bracket mounting point. Your options are to buy an expensive Z3M S54 motor mount or cut up the E46 M3 mount. OEM S54 plastic plenums are fairly robust usually last indefinitely if you leave the lower mount deleted. If you are running a carbon CSL airbox then it is critical to retain the OEM mounting as the vibrations can lead to carbon failures.

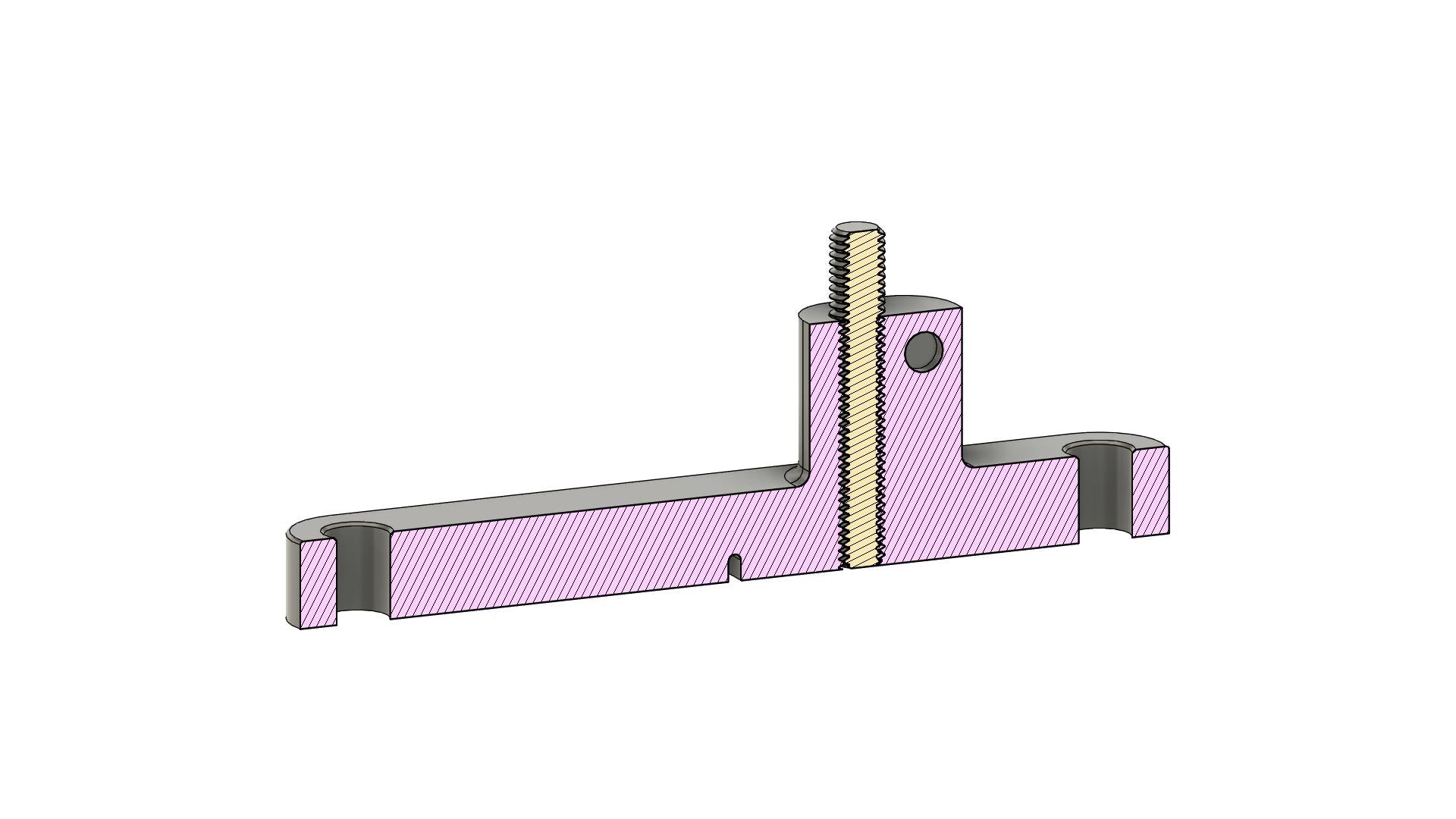

3D printed from $200/KG Bambu PPA-CF with aluminum-like strength, and high heat tolerance. Additionally a full length stud extends the entire height of the 3D printed part. This ensures no chances of part failure.
This bare bracket is being offered for FREE with ANY order. An aluminum CNC option is coming early 2025.

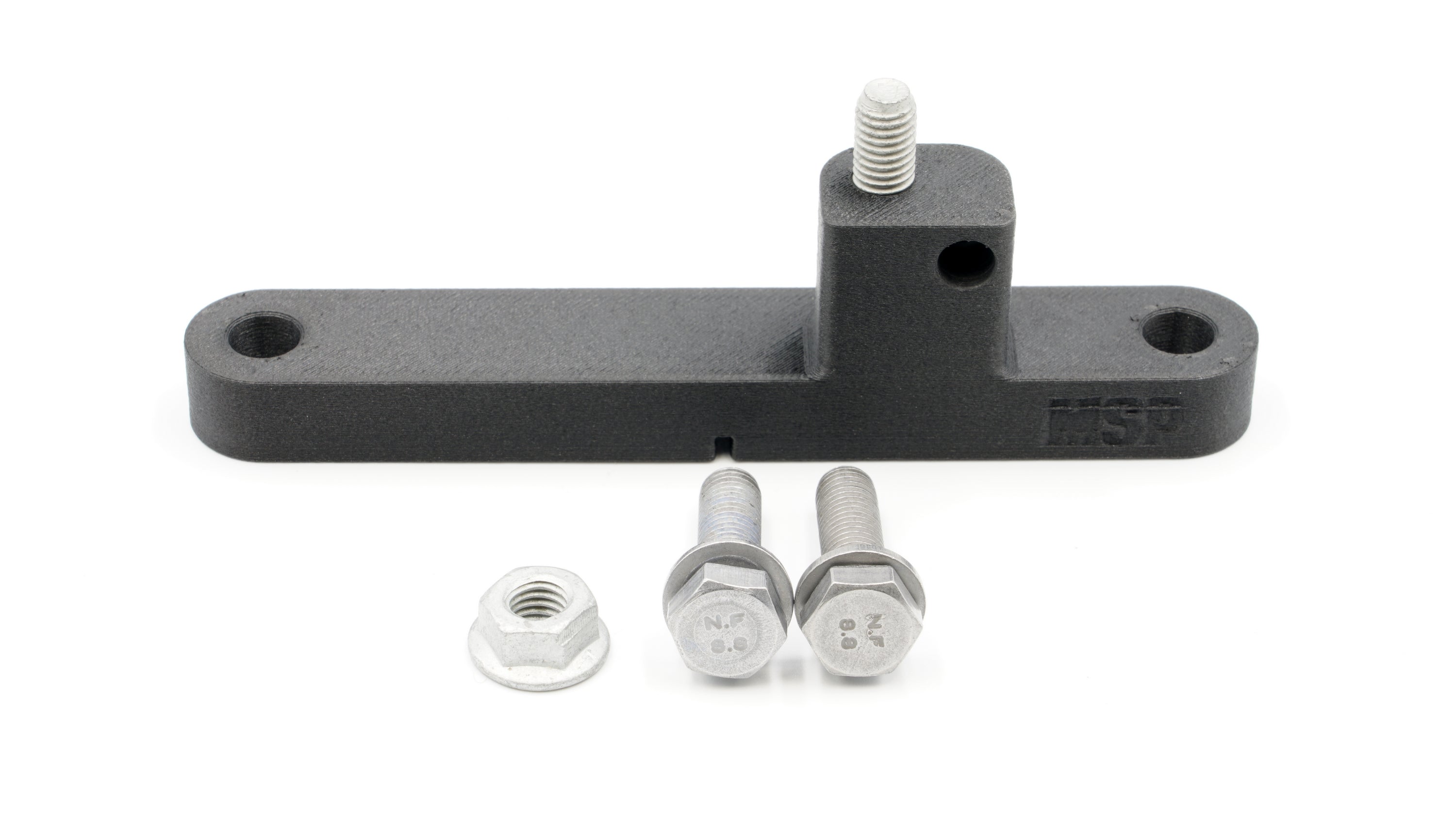

The hardware kit includes
- 07119905724 x2
- 97765A120 x1 M8 Flange Nut
