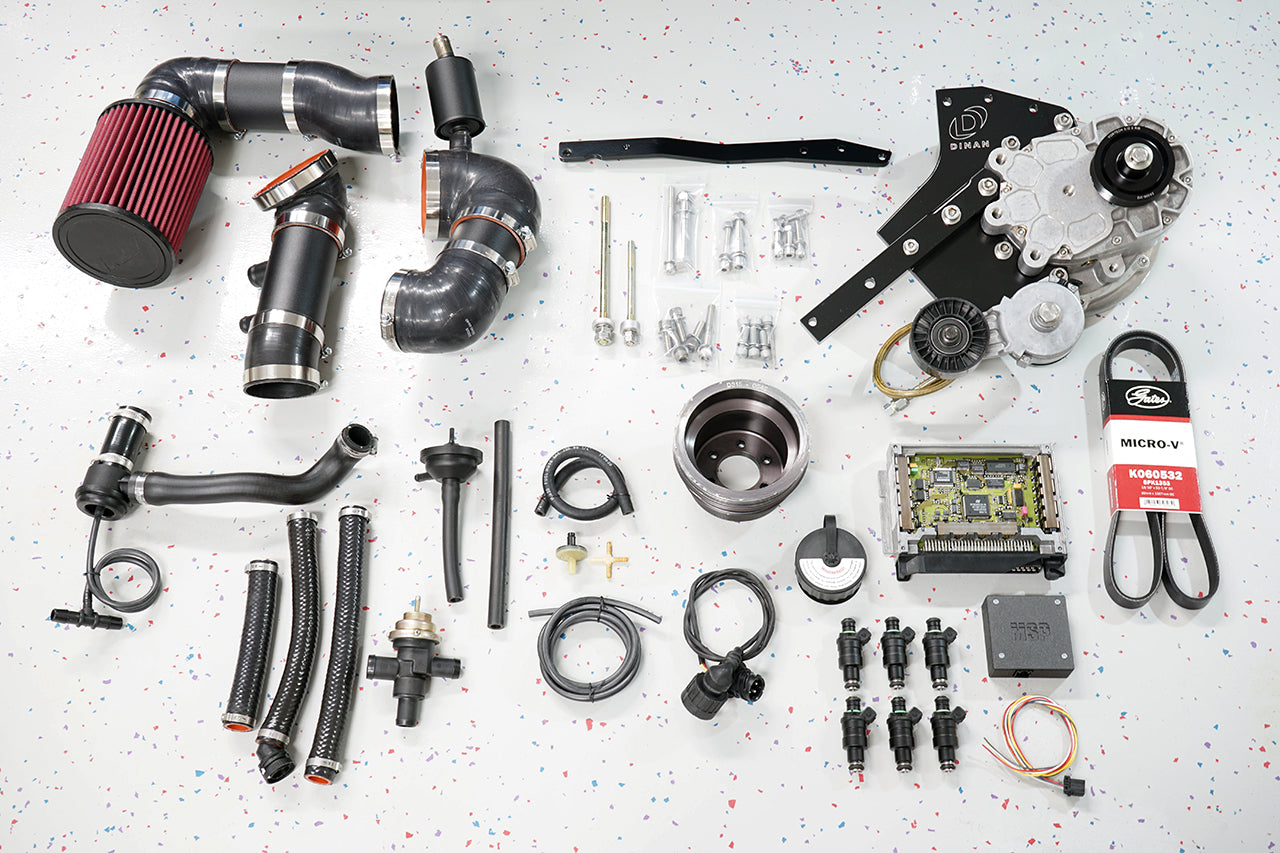

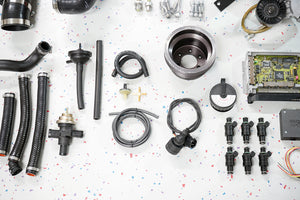

Dinan Supercharger Kit for Z3M (S52). Everything here is Plug and Play. An experienced mechanic can have this up and running in a weekend. The ECU included is already loaded with the necessary Dinan tune and is EWS deleted!
A standard 6.5psi kit puts out around 290-300 rear wheel horsepower (340hp crank) on a healthy motor. This one is at 10psi with roughly 30 more hp additional.

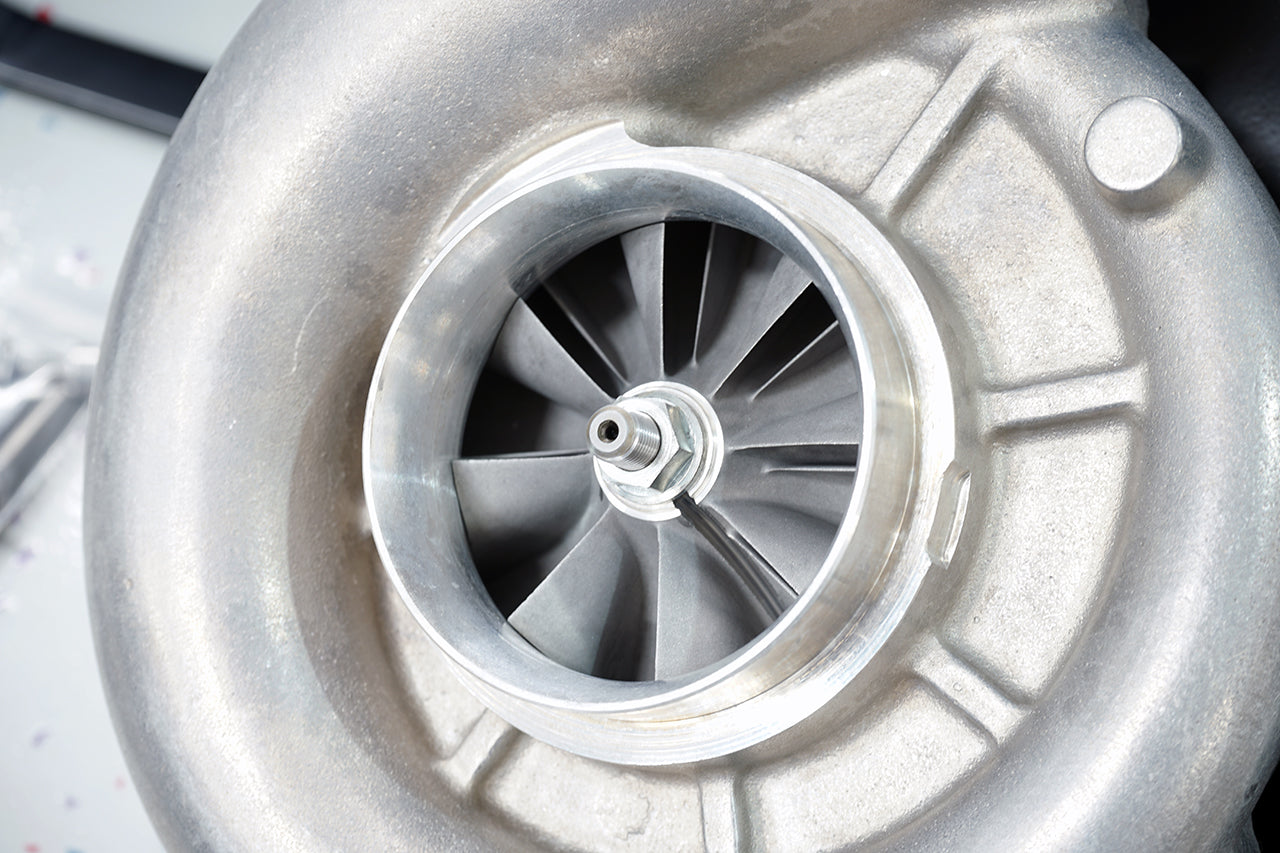

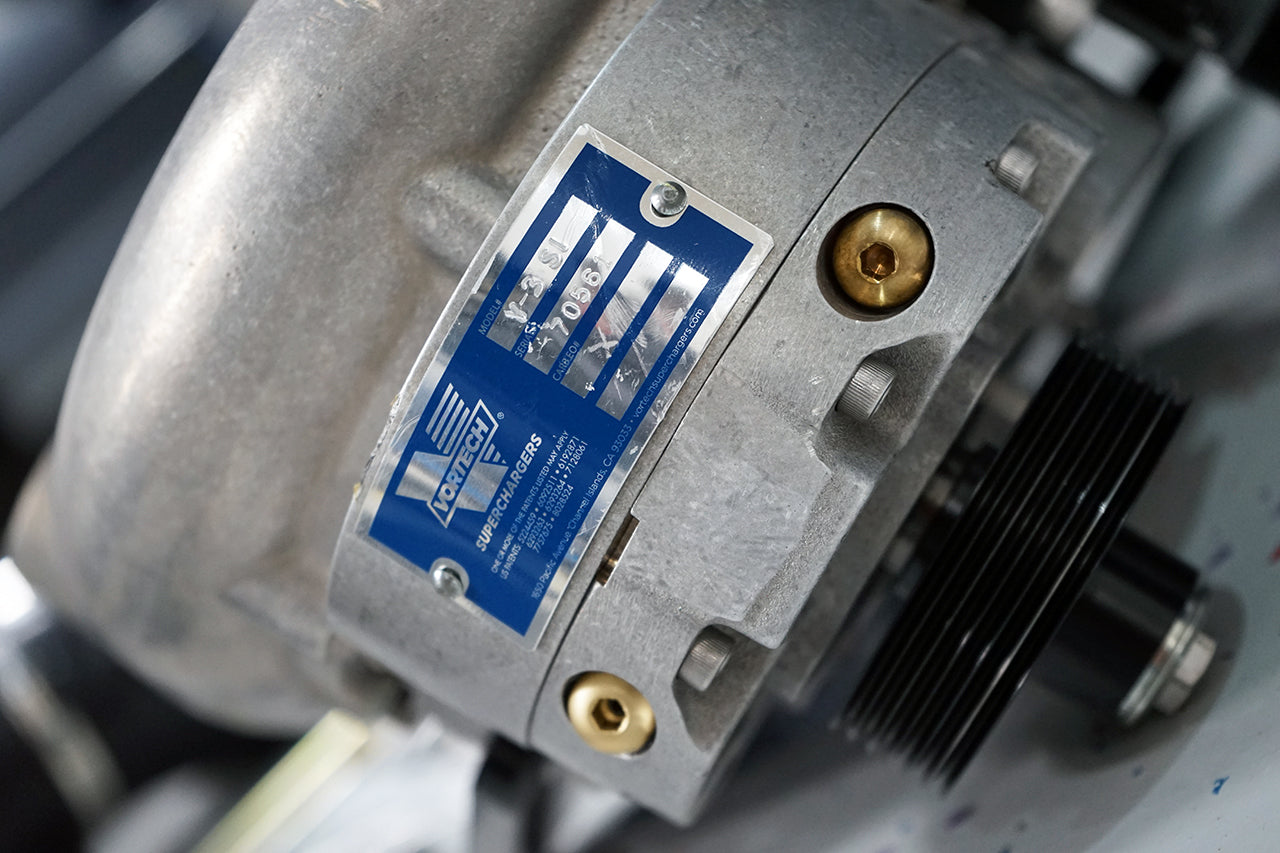

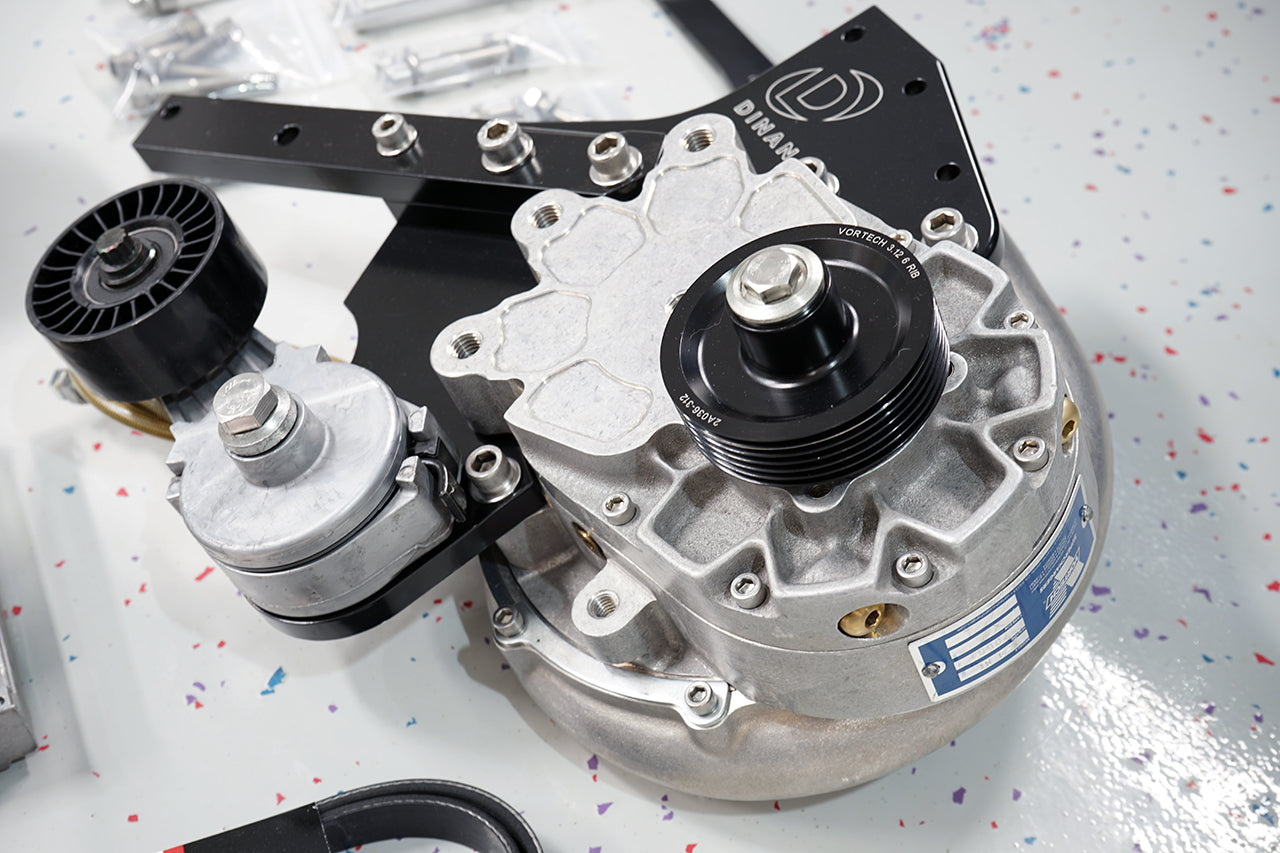

Vortech V3 Si Supercharger. Purchased new in 2019, 14k miles.

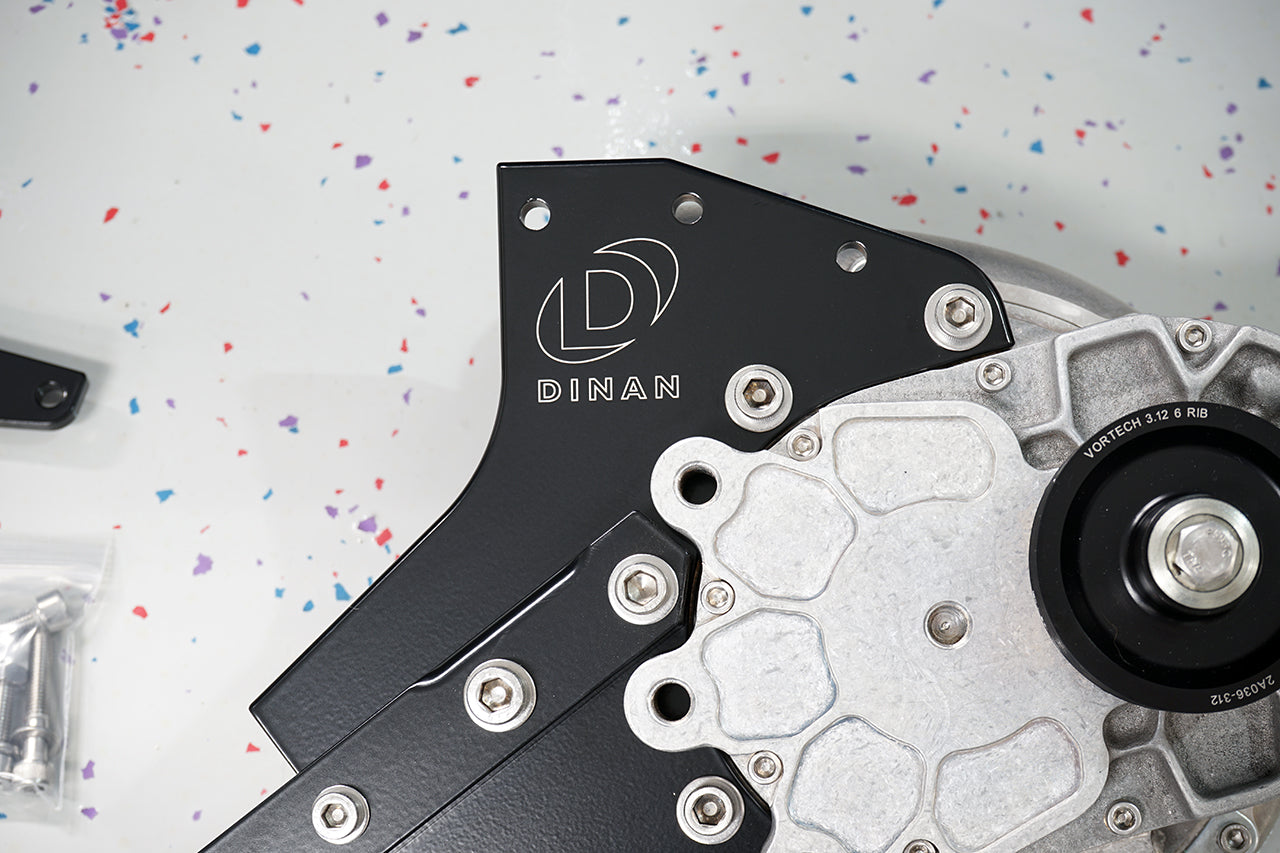

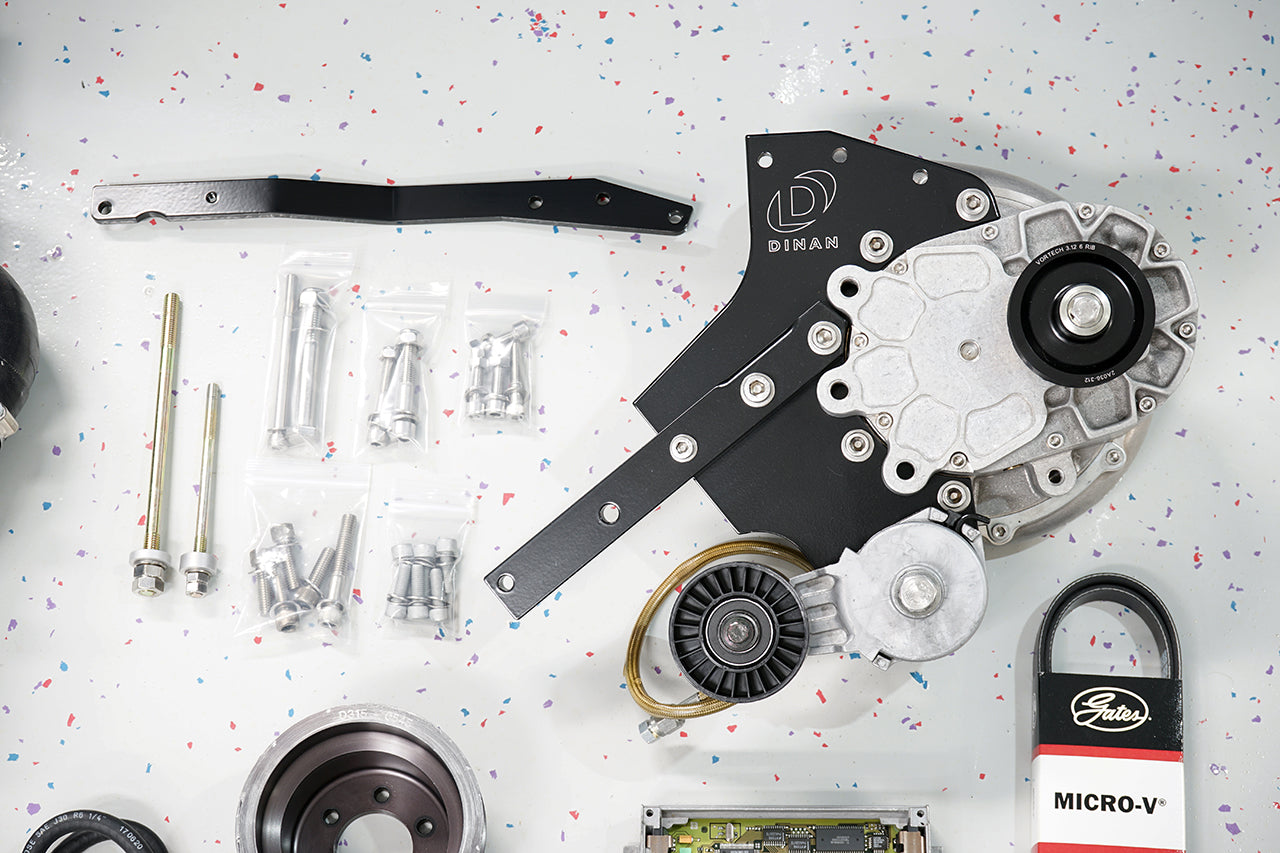

Dinan Supercharger Bracket Mounting w/New Powerdercoating. Original Dinan logo immaculately restored using a fiber laser.
New mounting hardware throughout

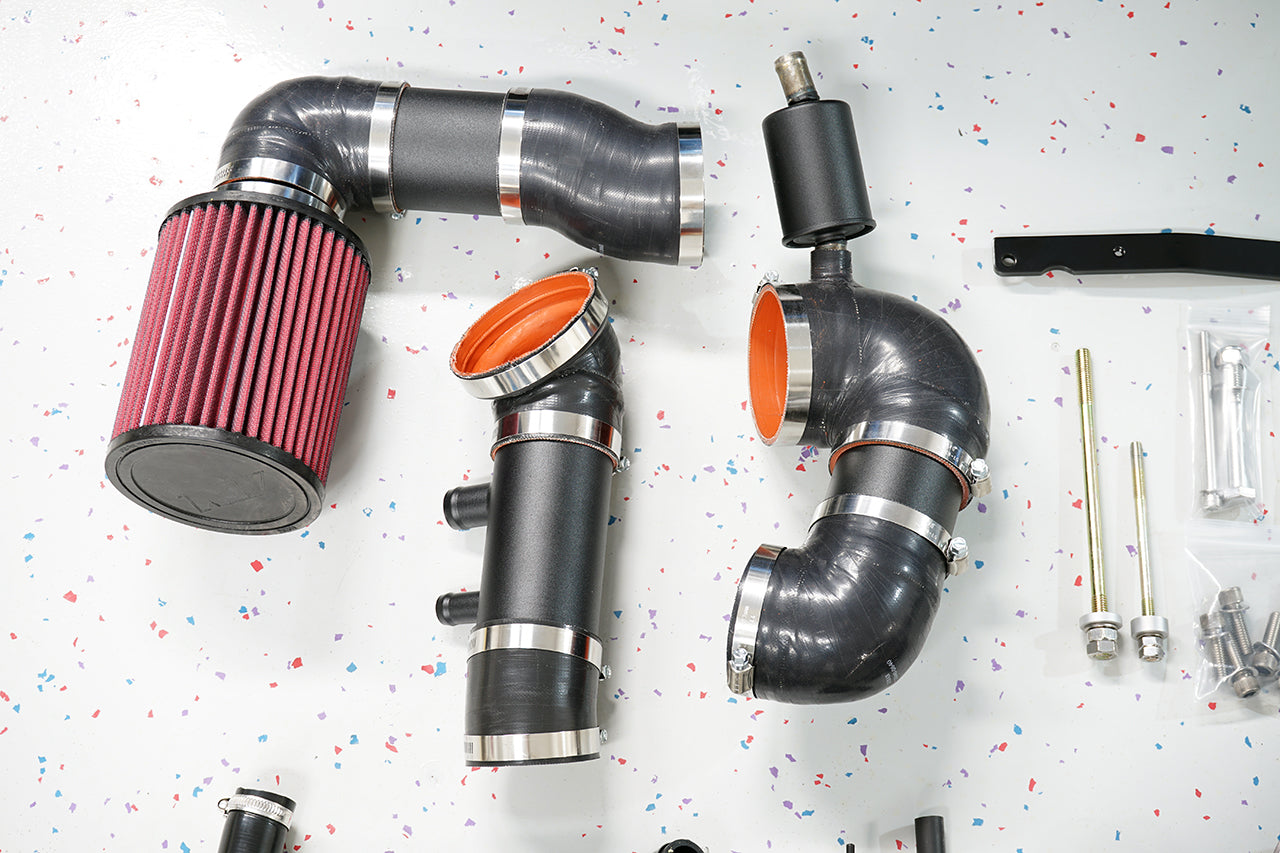

Dinan Boost Intake Pipes w/NEW Powdercoating (Supercharger to Throttle Body)
Dinan Z3M Specific Intake Pipes w/NEW Powdercoating (Supercharger to Air Filter)
New Air Filter
Dinan 5.15" Crank Pulley
Vortech Supercharger Pulley 3.12"
New Gates Belt Tensioner Pulley
New Gates Supercharger Belt (Specific to the 10psi pulley combo)
710n Kayser Bypass Valve (good for 16psi+)

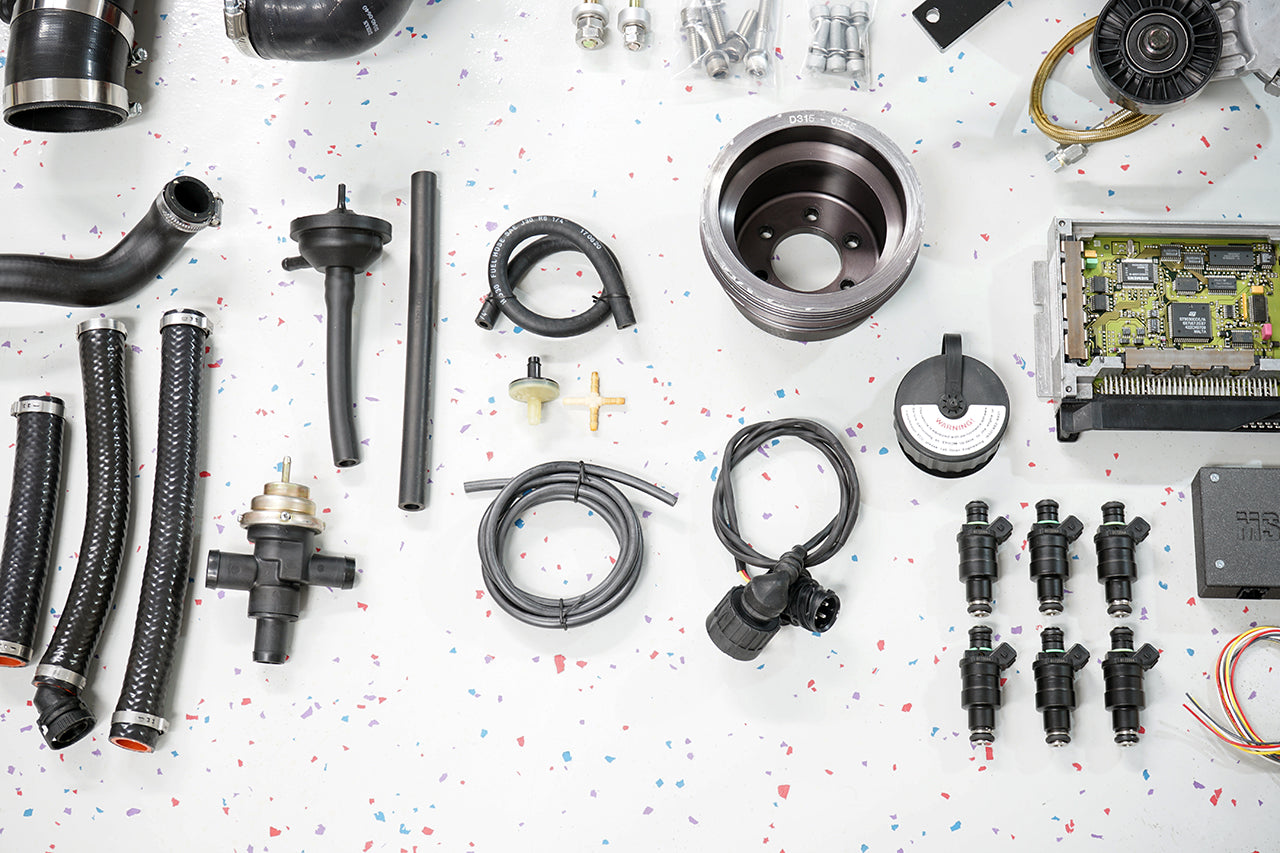

Rebuilt Dinan/Lucas 28.8# Injectors (D1720BA)
MSP PnP MAF Extension

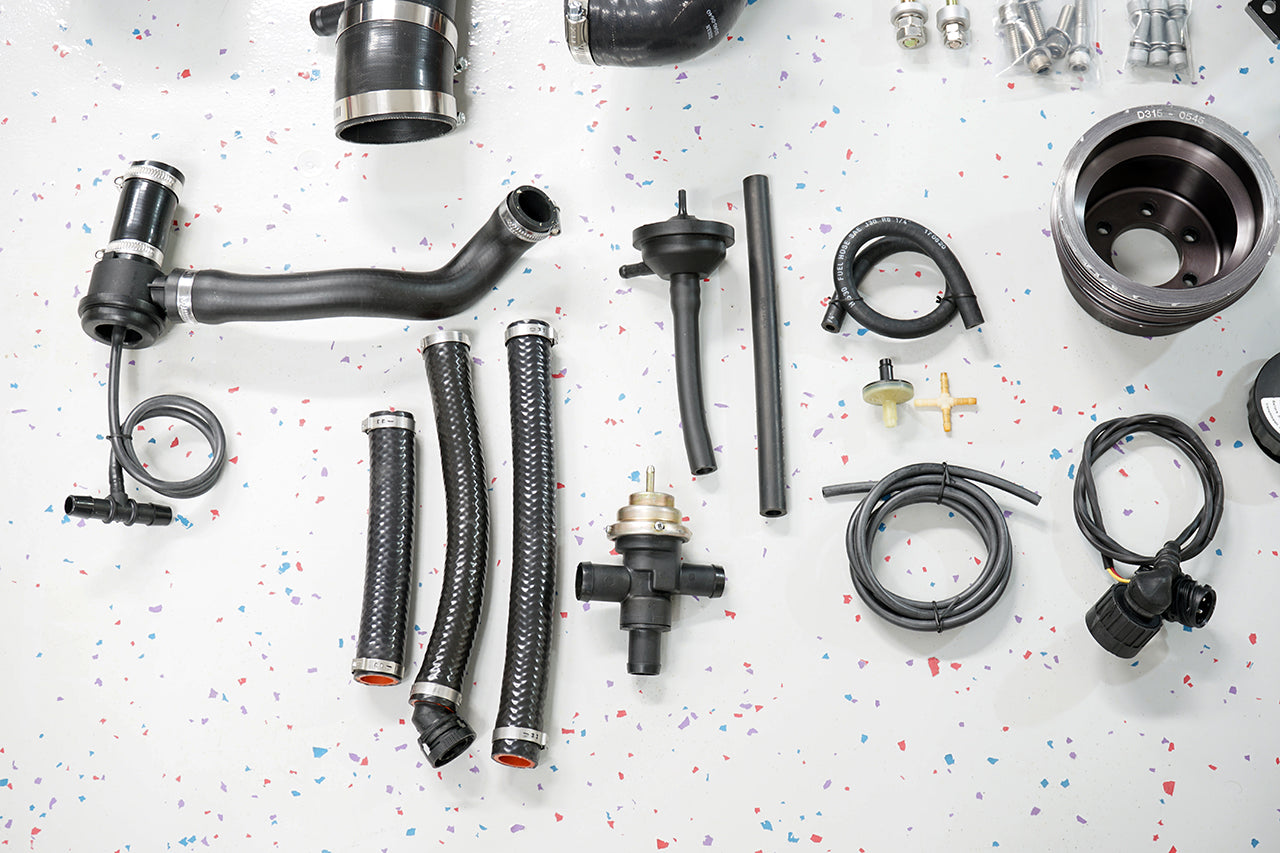

New Brake Booster Vacuum Tee w/Vacuum Hose to Bypass Valve

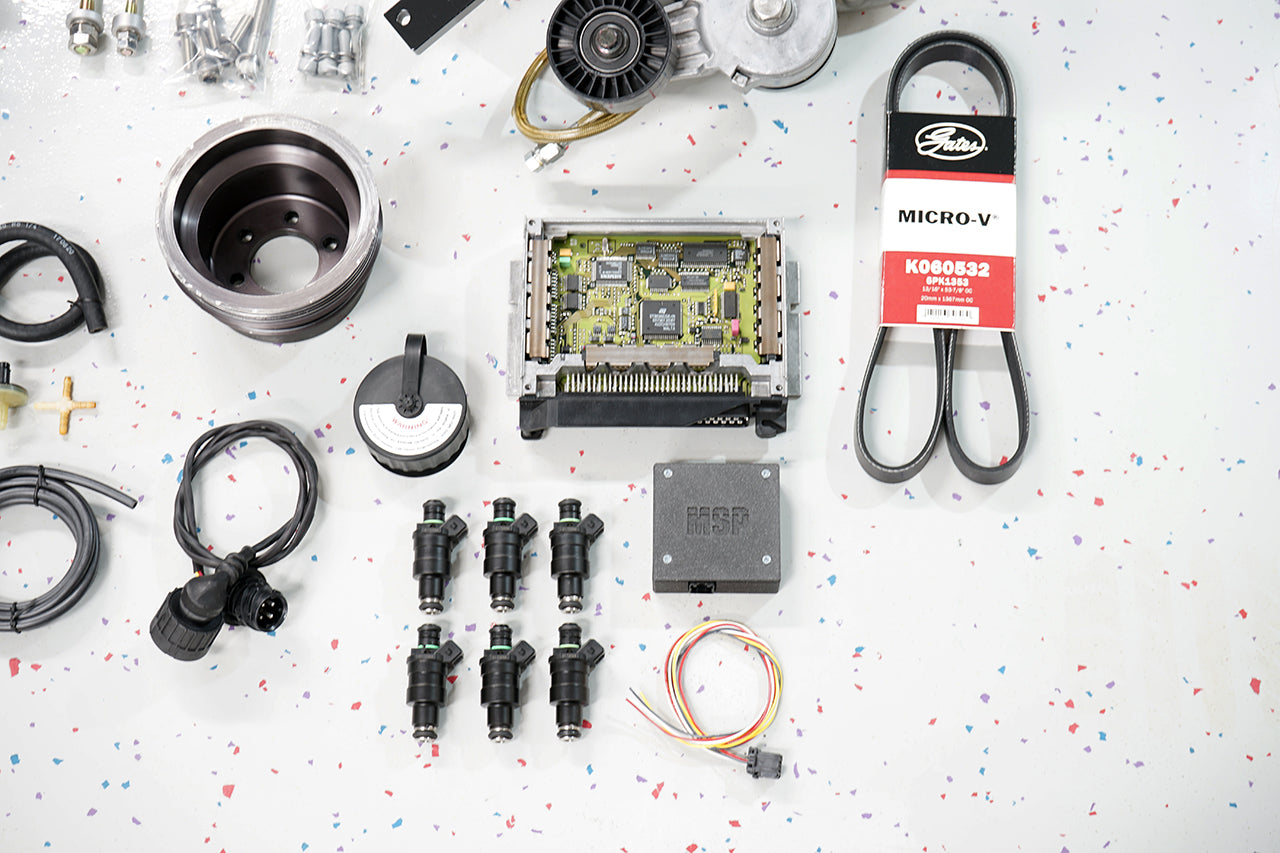

OBDII Dinan Tuned M3 ECU w/ NEW Dinan T9 Scaler and NEW Harness - EWS Deleted!
New Hose Clamps
Check Valve for Fuel Evap
Check Valve for Oil Separator to Oil Pan Drain
Check Valve for Valve Cover to Oil Separator w/NEW Silicone Hoses
New Silicone Vacuum Line
Dinan CARB Sticker
Dinan OBDII Install Directions (M3 specific but mostly applicable)
M50 manifold conversion specific for superchargers can be included (extra).
Your choice of ASC or ASC delete intake elbow.
The ECU can be programmed with your cars specific VIN if requested.
